Valve Components CNC Machining Solutions
High-precision turning and milling solutions for valve bodies, stems, seats and critical sealing components.
Ball Valve

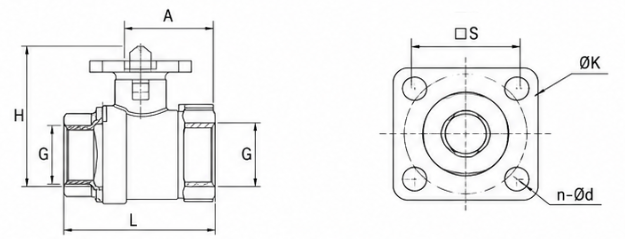

DIMENSION DRAWING
SIZE | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
G(BSPP) | 1/2' | 3/4' | 1' | 1-1/4' | 1-1/2' | 2' |
L(mm) | 60 | 65 | 78 | 88 | 103 | 120 |
H(mm) | 49 | 54 | 62 | 71 | 78 | 91 |
A (mm) | 11 | 11 | 14 | 14 | 17 | 17 |
S (mm) | 36 | 36 | 42 | 42 | 50 | 50 |
ΦK(mm) | 42 | 42 | 50 | 50 | 70 | 70 |
n-Φd(mm) | 4-Φ5 | 4-Φ5 | 4-Φ6 | 4-Φ6 | 4-Φ7 | 4-Φ7 |
RECOMMENDED MACHINEFOR
Ball Valve

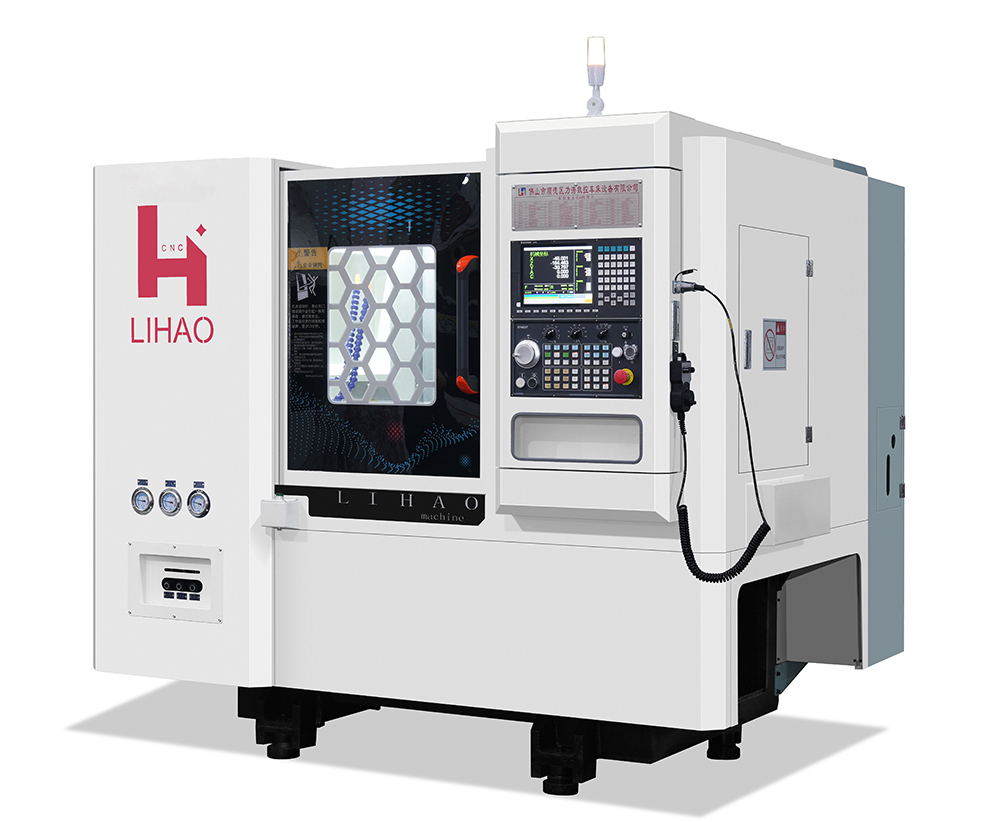

LIHAO LHSK 46P CNC LATHE
• rigid 90° L-type machine structure
• 12 stations turret
SIMULATED MACHINING PROCESS
90° L-type machine structure
WHY CHOOSE LIHAO LHSK 46P?
Enlarged Machining Capacity
The rigid 90° L-type machine structure, combined with a live tooling turret, provides a larger machining envelope and improved accessibility. It is ideal for complex parts, long workpieces, and multi-process machining applications.
Flexible Tailstock Configuration
An optional tailstock is available to accommodate different machining requirements. It provides reliable support for long and slender workpieces, enhancing machining stability, accuracy, and application flexibility.
